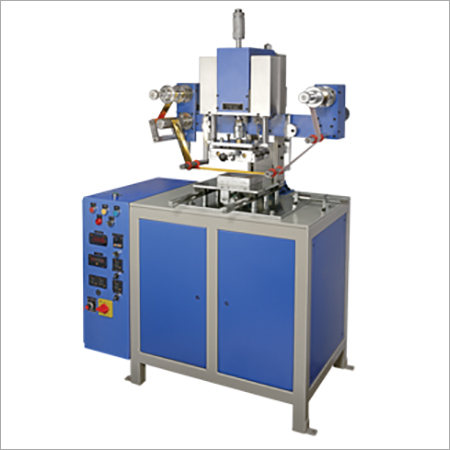

Hot Stamping Machine for Sheet

Hot Stamping Machine for Sheet
Hot Stamping Machine for Sheet
Product Code : CN 24
Product Description

Hot Stamping Machine for Sheet

  • Techno Print specializes in the design and production of custom hot stamp and heat transfer foil decorating machines. We have a broad range of performance oriented hot stamping machines, which are considered for their premium performance and efficiency.
  • The machine model CN 24 is an easy-going machine for Hot Stamping, it uses a heated roller to apply decorative foil or heat transfer decals to flat or slightly contoured surfaces. This machine had wide acceptance in the Continuous/ Part Sheet, especially for Plastic sheet, MDF wood, PVC Profiles industries.
  • This machine is a single mandrel machine and works up to 08 parts per minute*. The product can be loaded manually or semi-automatically and semi-automatically ejected after the printing cycle. Being a single mandrel machine the set- up time is very less and tooling cost is minimized.
  • A wide range of part sizes can be accommodated and the starting position of the product can be set precisely as desired.
  • It has the ability to decorate directly from the moulding process with front-mounted operator interface
  • The machine CN 24 provides brilliant, multi-coloured graphics with "no label" look, where decoration appears to be part of the container

Specification

Parameters

Units

LM 12

Power Consumption

KW

12

Stamping Temp (Range)

30 - 300

Printing Pressure

Kgf

300

Printing Dimension (Round)

inch


Printing Dimension (Flat)

inch

24"W x Cont L

Linear Printing Speed

inch/s

6

Printing Output**

pcs/min


Machine Dimension (HxWxD)

inch

68 x 78 x 48

Power Requirement


230V; 1Ø; 50Hz

Net Weight

Kg

400

Gross Weight

Kg

500



Key Features:

  • The machine is known for the high performance, simple operation and low maintenance.
  • Overall power consumption is up to 40% less, related to conventional machines
  • Precise foil advance system which can be adjusted to enable the operator to locate the foil at the correct position
  • Operator-friendly graphical display for rapid parameter adjustment
  • Front panel speedy control to set ideal head travel speeds, stamping pressure, and foil stripping condition
  • Convenient and easy stroke length adjustment for rapid setup
  • Accurate, repeatable cycling for minimal foil waste
  • Optimum Performance and Transfer Quality from job to job.
  • Special provision are made to avoid damage of silicone roller in case of power failure.

Construction Features:

  • This machine is pneumatically operated and has micro-controller based control system.
  • For precise temperature control the machine is equipped with PID temperature controller.
  • Rugged cast iron frame provides high repeatability, while modular design permits easy adaptation to oversize parts
  • The machine is rugged yet compact in construction.
  • State-of-the-Art Technology for product orientation and Hot Stamping Process.
  • All machined components are coated for long-term protection.
  • The vertical movement of the stamping head is guided by precision ground S.S. guide rods and phosphor bronze bushes.
  • The to and fro movement of the carriage housing of the digit wheel is guided in hardened & precision ground and plated guide rods and linear bearings.
  • This machine uses German made infrared ceramic heaters, for better Performance and long life.
  • All major Electronic Control System components are from reputed manufacturers like Omron, Selec, Schneider Electric, Laptron, etc.
  • All major Pneumatic System components are from reputed manufacturers like Festo, Janatics, etc.

Optional Attachments

  • Semi-automatic part loading system
  • Semi-automatic ejecting system
  • Image / Dot sensor for foil
